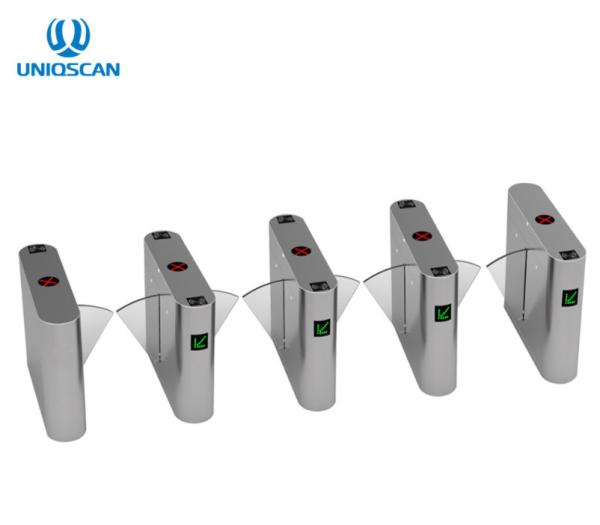

304 SS Bidirectional Flap Barrier Turnstile Retractable Flap Barrier

SHENZHEN UNISEC TECHNOLOGY CO.,LTD

304 SS Bidirectional Flap Barrier Turnstile Retractable Flap Barrier

  • 1
  • 2

Brand Name : UNIQSCAN

Model Number : UT560

Certification : CE

Place of Origin : Shenzhen

Product name : Flap Type Turnstile

Dimension : 1200*300*980 mm

Material : 304 Stainless Steel

Power supply : AC220V/110V,50/60Hz

Type : single core & double core

Passage width : 600mm

Working environment : Indoor / Outdoor ( Shelter)

Communication interface : TCP/IP/R485

Direction : one or bi-direction(optional)

Transit speed : 30~40 persons / min

Application : fare collection,ticket station,Office

Contact Now

304 SS Bidirectional Flap Barrier Turnstile Retractable Flap Barrier

Electronic Safety Flap Barrier Turnstile Gate Use For Office Building Entrance

This type of gate is suitable for public occasions with large flow of people. Its service life and safety are the primary considerations of the product. The whole system uses stepless positioning device, the operation process is controlled by sensors, no mechanical collision, so as to achieve stable operation, low noise and less wear. According to a large number of project actual use data summary, the actual service life of the equipment is more than 5 million times. Magnet adsorption, belt drive, servo mobile positioning driver and other high price components are designed to avoid injuring pedestrians.

Technical specifications

Dimensions (mm)

Length: 1000mm

Width: 300mm

Height: 980mm

Main material

Box: SUS304 1.8mm stainless steel

Movement: 45 × steel, color zinc plating on the surface

Door body: plexiglass plate

Movement performance

Door body: plexiglass plate, etc.

Drive mode: brush positioning driver

Safety touch: automatic opening after power failure

Power driven: brush motor

Door opening mode: split split

Opening and closing speed: 0.2 ~ 0.6s (user can set)

Channel width: 550mm;

Equipment noise: door opening and closing ≤ 30dB

Traffic speed: 35 persons / min in normally closed mode; 60 persons / min in normally open mode

Core life: 5 million times

Features:

1) Brush motor, acrylic baffle, marble top cover, 5 pairs of infrared;
2) With the function of automatically opening the door wing after power failure, it can meet the requirements of fire escape;
3) Anti-tailing and anti-submarine return;
4) With automatic reset, infrared anti-pinch function;
5) Multiple working modes are available;
6) Scope of application: campus, community, etc.
