Full Automatic Traffic Hydraulic Road Blocker , Vehicle Road Security Barriers

Name: Full Automatic Traffic Hydraulic Road Blocker Vehicle Road Security Barriers
Brand: Uniqscan
Price: 1 USD

Brand Name : Uniqscan

Model Number : Uniqscan

Certification : CE&ISO

Place of Origin : China(mainland)

MOQ : 1 unit

Price : negociation

Payment Terms : Western Union, T/T, L/C

Supply Ability : 1000 units /month

Delivery Time : 3-5 days after the receipt of payment

Packaging Details : carton or wood,standard export packing

Control System : Electro- Hydraulic

Passing pressure： : ≤120 tons container trucks

System Dynamic power : 3.75KW

Rise time ： : ≤1-3S（adjustable）

fall time ： : ≤1-3S（adjustable）

Buffer function : buffer time :0.2s-0.5s

Running noise : ≤60 db

Voltage： : Three-phases 380V,（control voltage 24V）

Oil container : 60liter

Control solenoid valve : 24V

Lifting solenoid valve : 24V

Remote control distance : Approx .50-100m

name : rising road blocker

Contact Now

Full Automatic Traffic Hydraulic Road Blocker , Vehicle Road Security Barriers

Uniqscan Security Blocker Hydraulic Road Blocker Vehicle Security Barrier

Full Automatic Traffic Hydraulic Road Blocker , Vehicle Road Security Barriers

Technical Parameter:

Control System	Electro- Hydraulic
Passing pressure:	≤120 tons container trucks
System Dynamic power	3.75KW
Rise time :	≤1-3S(adjustable)
fall time :	≤1-3S (adjustable)
Buffer function	buffer time :0.2s-0.5s
Running noise	≤60 db
Voltage:	Three-phases 380V,(control voltage 24V)
Oil container:	60liter
Control solenoid valve	24V
Lifting solenoid valve	24V
Remote control distance	Approx .50-100m
Working Temperature :	-35℃~75℃(suitable)
Material:	A3 steel ,Spray anti-rust paint
Material thickness	16mm,20 mm,25 mm (Optional)
Waterproof:	IP68, double sealed
LED light color	red,blue,green,yellow,purple,white…(customized)
Color:	red,blue,green,yellow…(can be customized)
Weight:	1.5T

Main Function

Can be manually raised and fall down if power cut.
Gang-control interface
Reliable structure, heavy duty load, smooth action, low noise.
In rising and falling, reversible operation is available .
Hydraulic drive comes with hydraulic lock
Welding cylinder
PLC programming command control system
LCD display ,Both Chinese and English menu.
PLC built-in encryption system
Heavy duty hydraulic cylinders :HOB63-200CA+I Stroke200 Heavy duty Industrial Level
Double dynamic double oil pump 2.3ML/time
Hydraulic oil hose:PT international interface ,1/2 Double wire high pressure hose

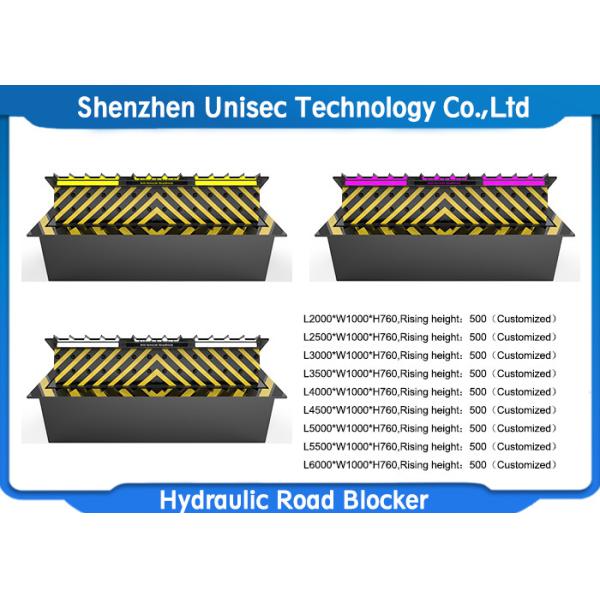

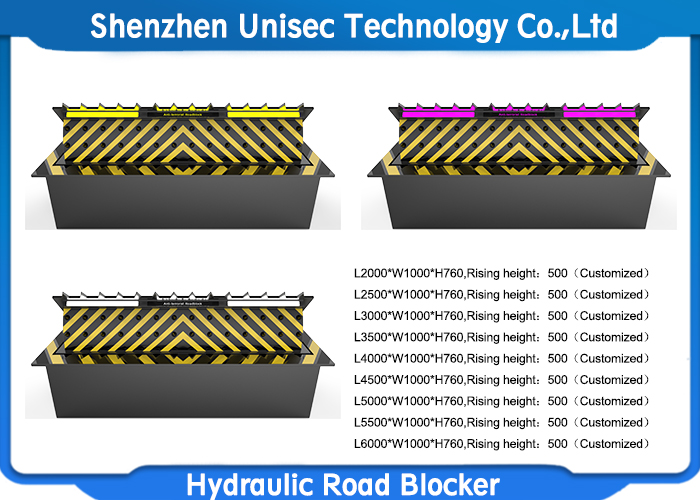

Standard Road blocker size: (mm)

L2000*W1000*H760,Rising height:500(Customized)

L2500*W1000*H760,Rising height:500(Customized)

L3000*W1000*H760,Rising height:500(Customized)

L3500*W1000*H760,Rising height:500(Customized)

L4000*W1000*H760,Rising height:500(Customized)

L4500*W1000*H760,Rising height:500(Customized)

L5000*W1000*H760,Rising height:500(Customized)

L5500*W1000*H760,Rising height:500(Customized)

L6000*W1000*H760,Rising height:500(Customized)

Full Automatic Traffic Hydraulic Road Blocker , Vehicle Road Security Barriers
